Mechanical Heads

The mechanical heads designed and manufactured by Ima Tecno are applied on vertical lathes and gantry machines in cases where the RAM can drag the accessories.

DOWNLOAD CATALOG

Taylor Made

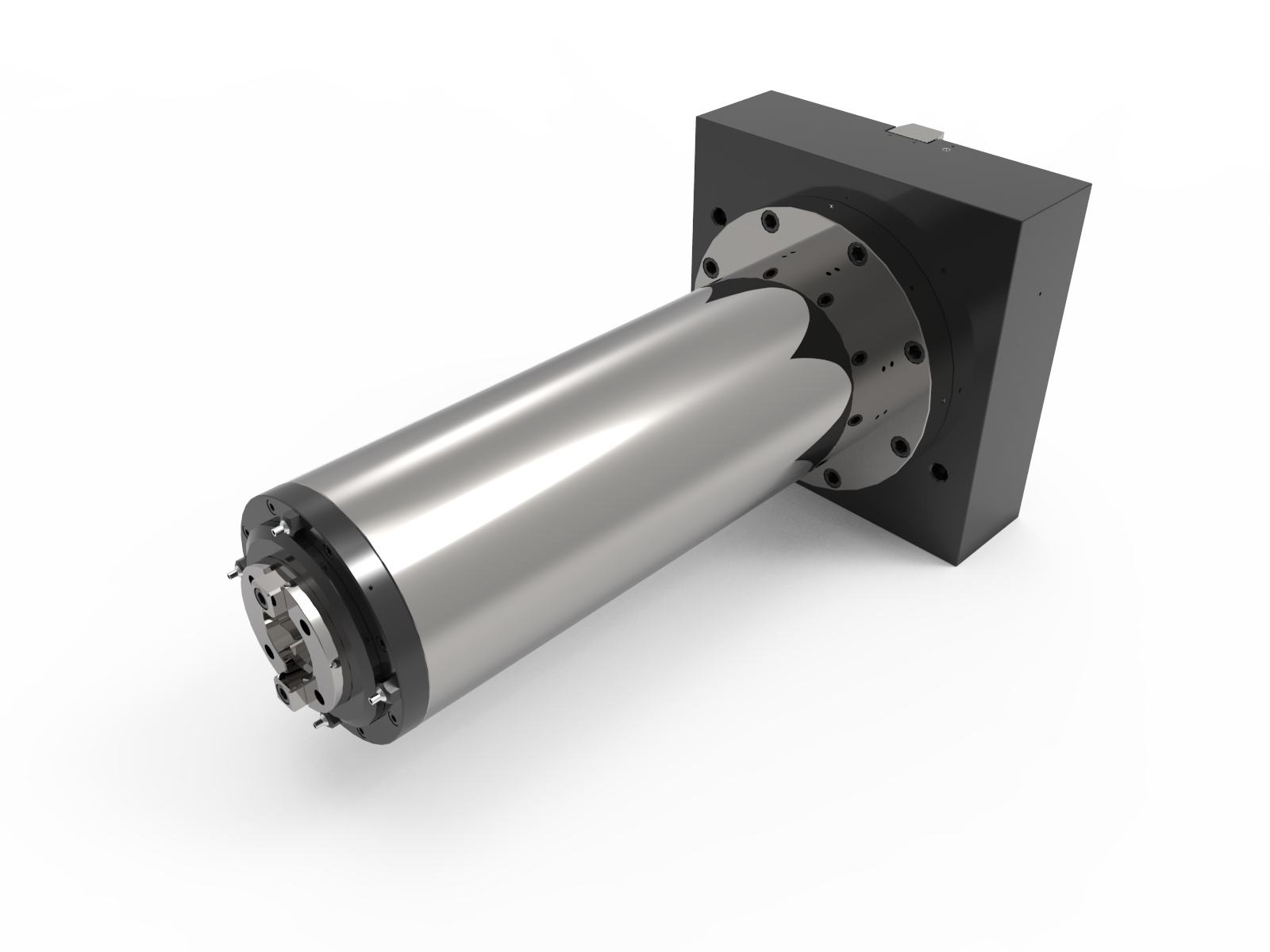

The milling or grinding extensions designed and manufactured by Ima Tecno satisfy the most varied needs of customers in terms of dimensions and transmissible torque-power.

Our Mechanical Heads can reach working torques up to 2,500 Nm.

DOWNLOAD CATALOG

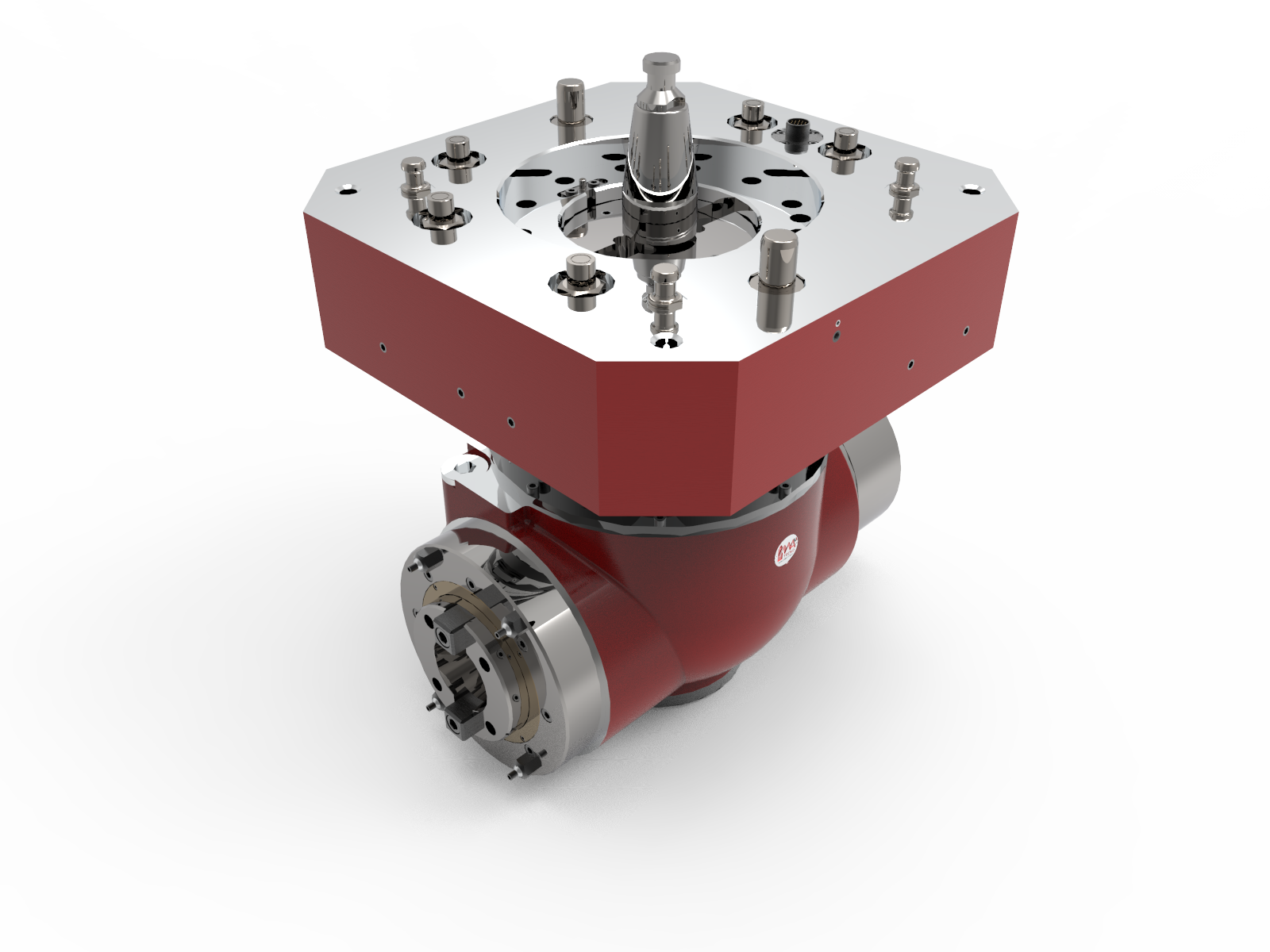

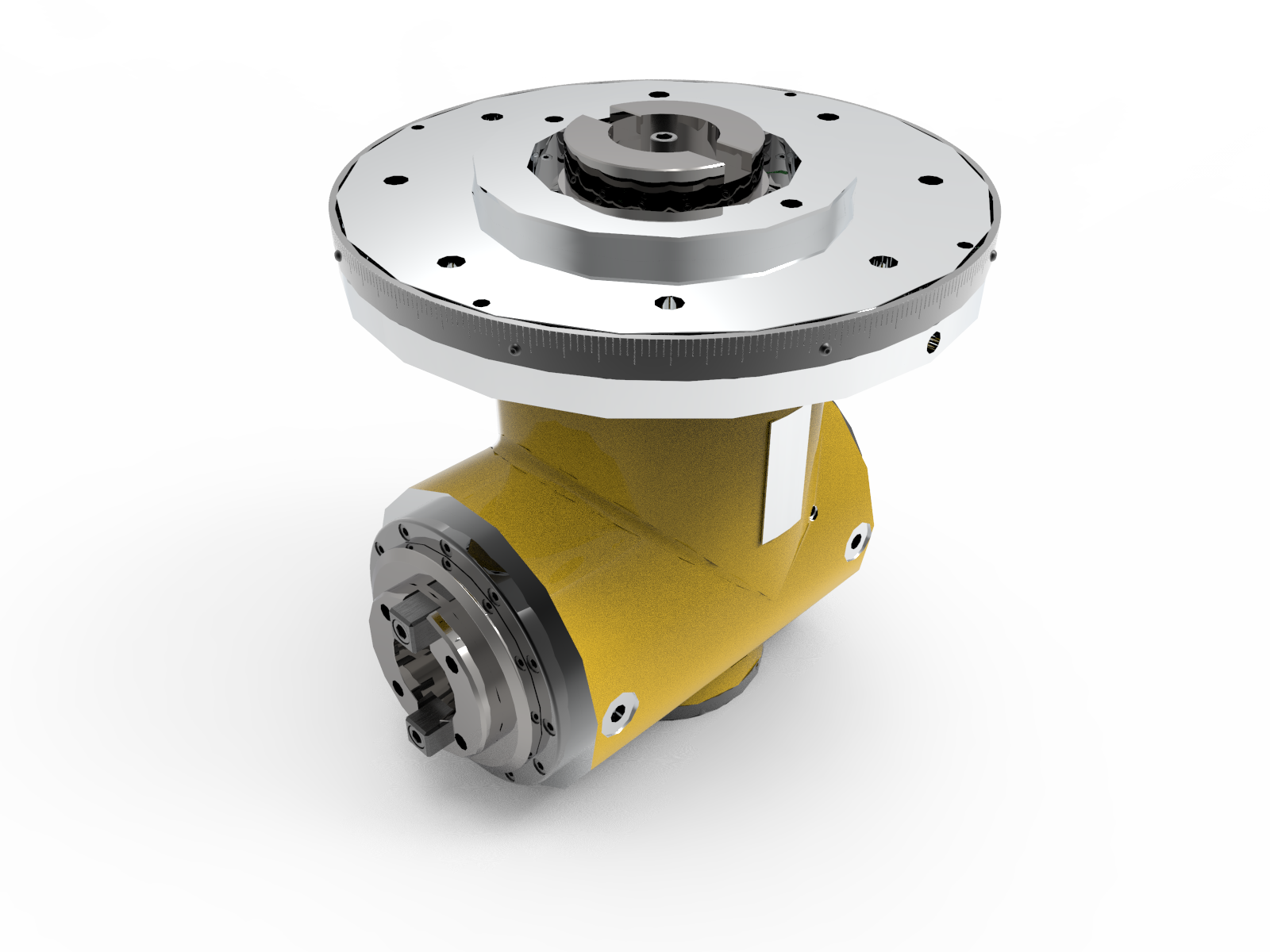

The 90 ° angular heads can be made with fixed or indexed axis by means of Hirth coupling from 1 ° to 2,5 °.
In the latter case, the movement of the axis can be managed by an external motor or by the axis of the RAM.
The tool change can be both automatic and manual.

Our Mechanical Heads can reach working torques up to 2,500 Nm

DOWNLOAD CATALOG

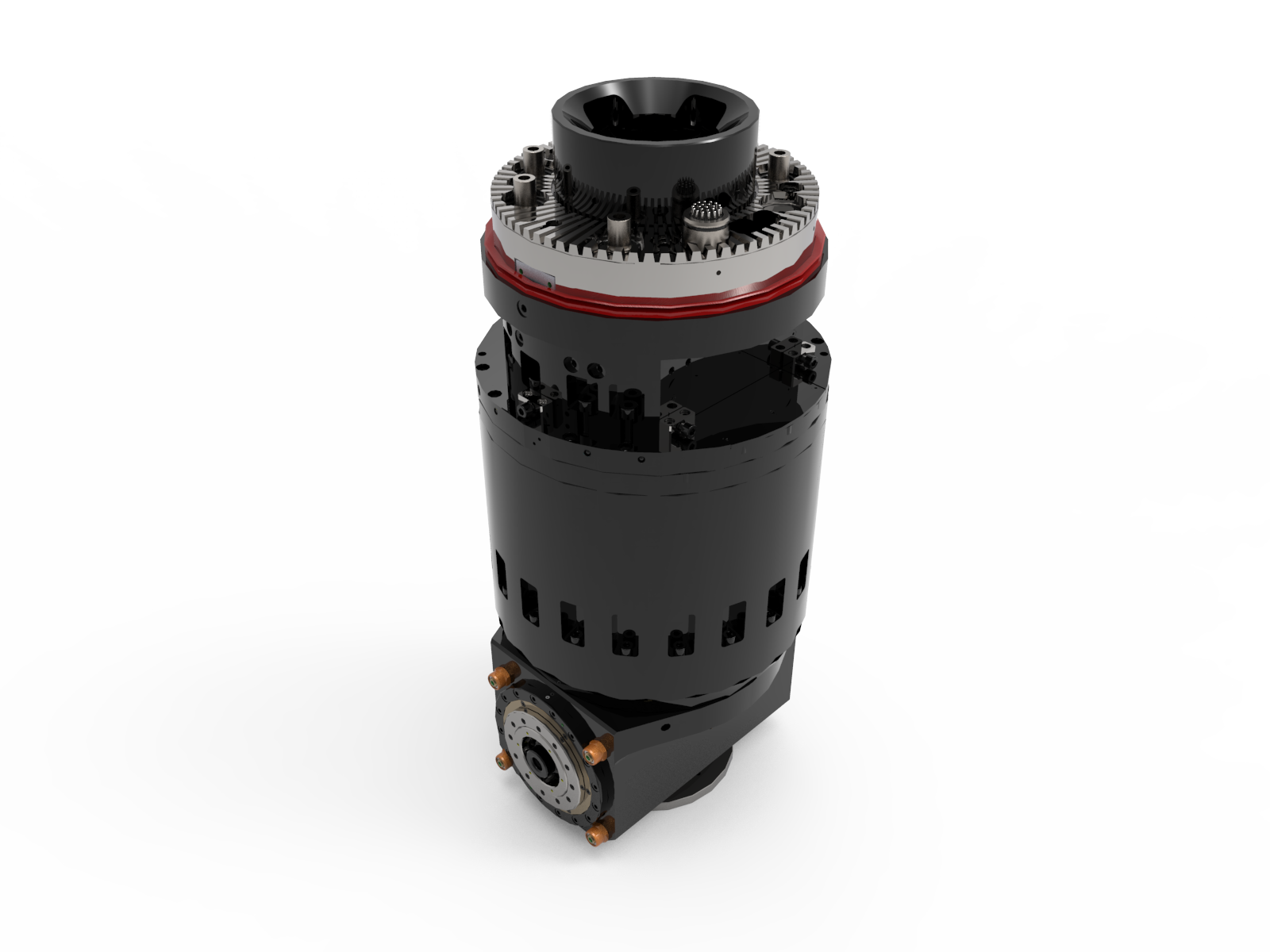

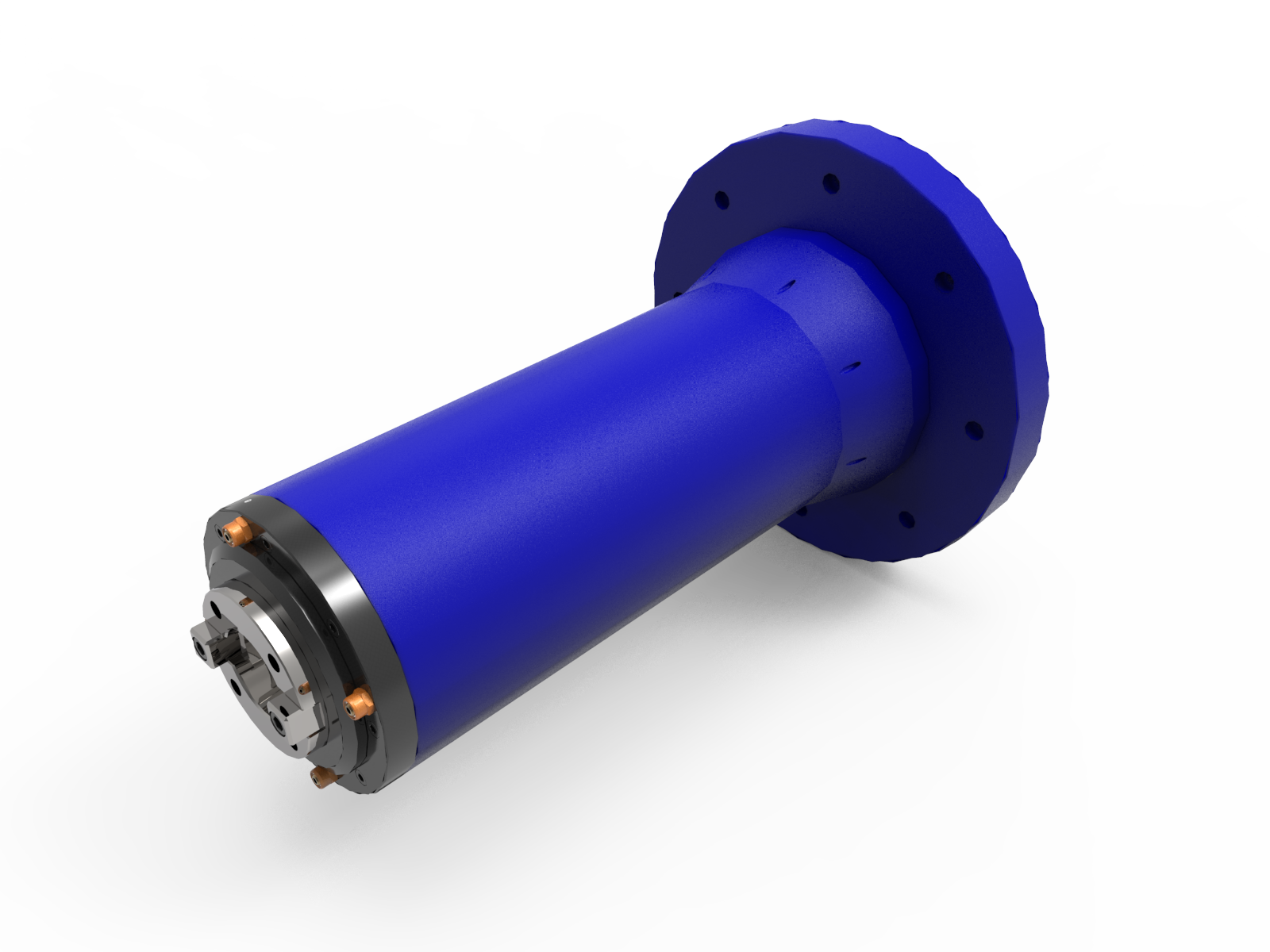

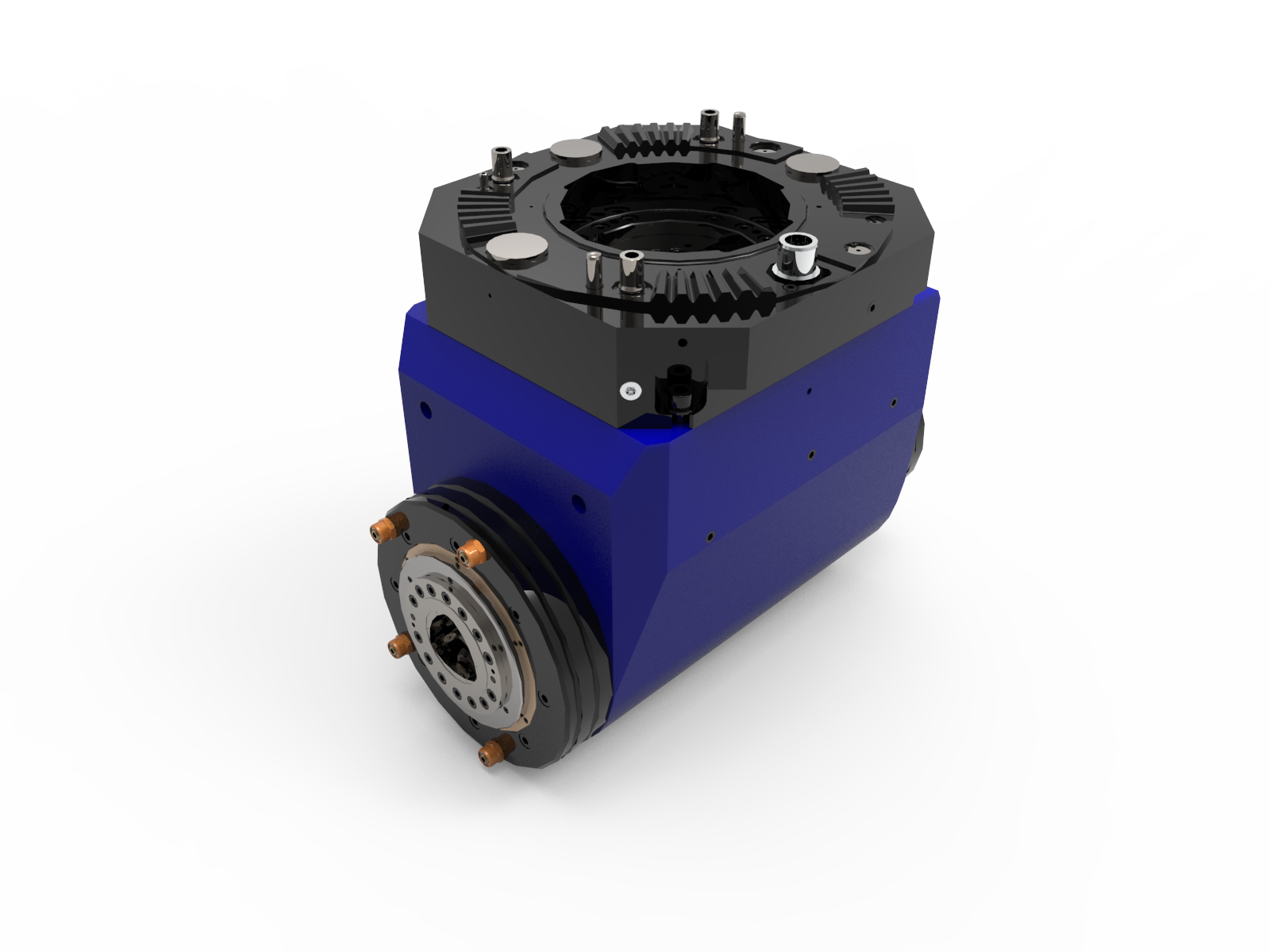

In 1-2 axis mechanical heads, the motion of the tool is generated directly by the machine RAM. The movement of the axes is managed by external motors.

Our Mechanical Heads can reach working torques up to 2,500 Nm

DOWNLOAD CATALOG

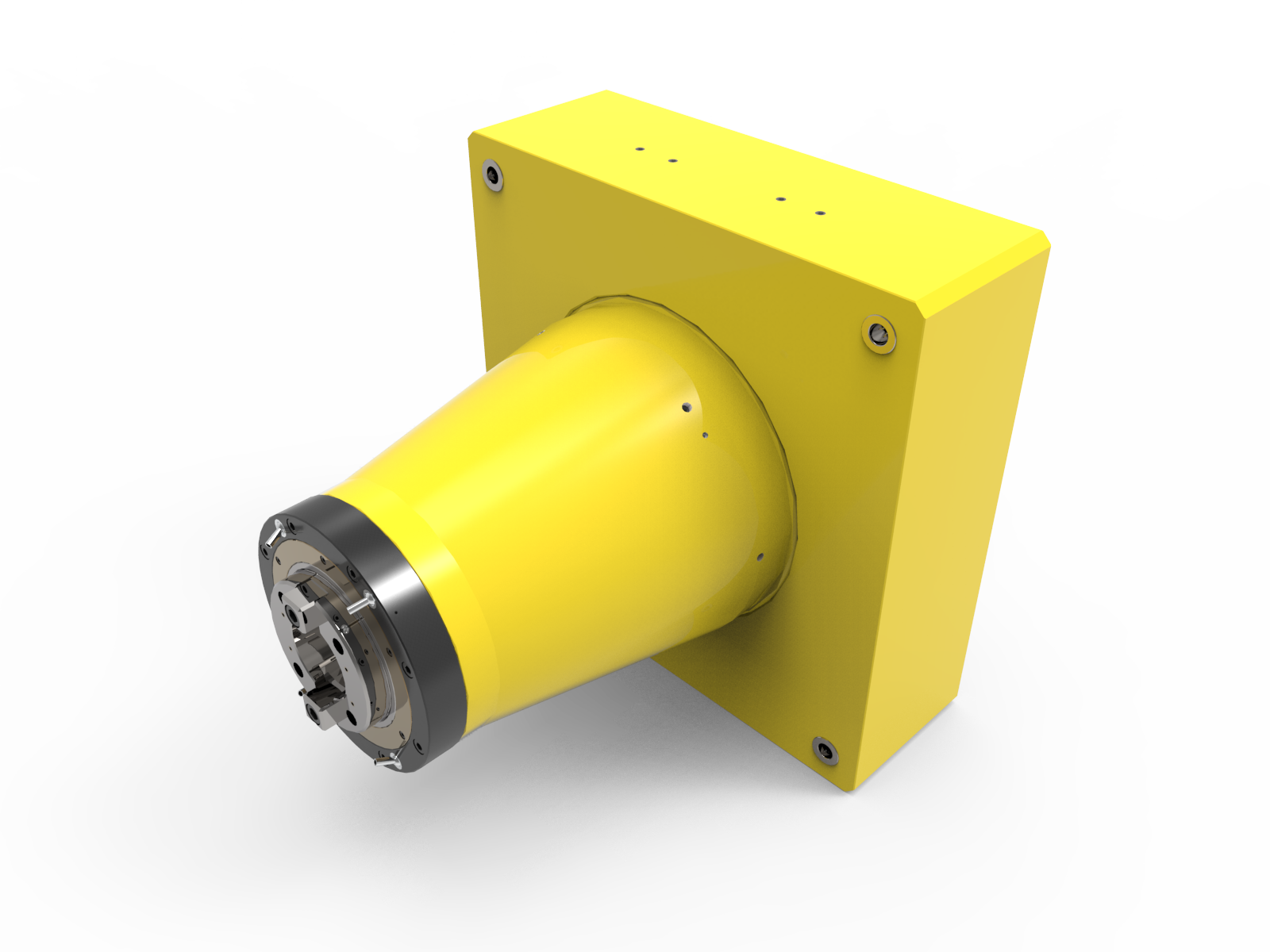

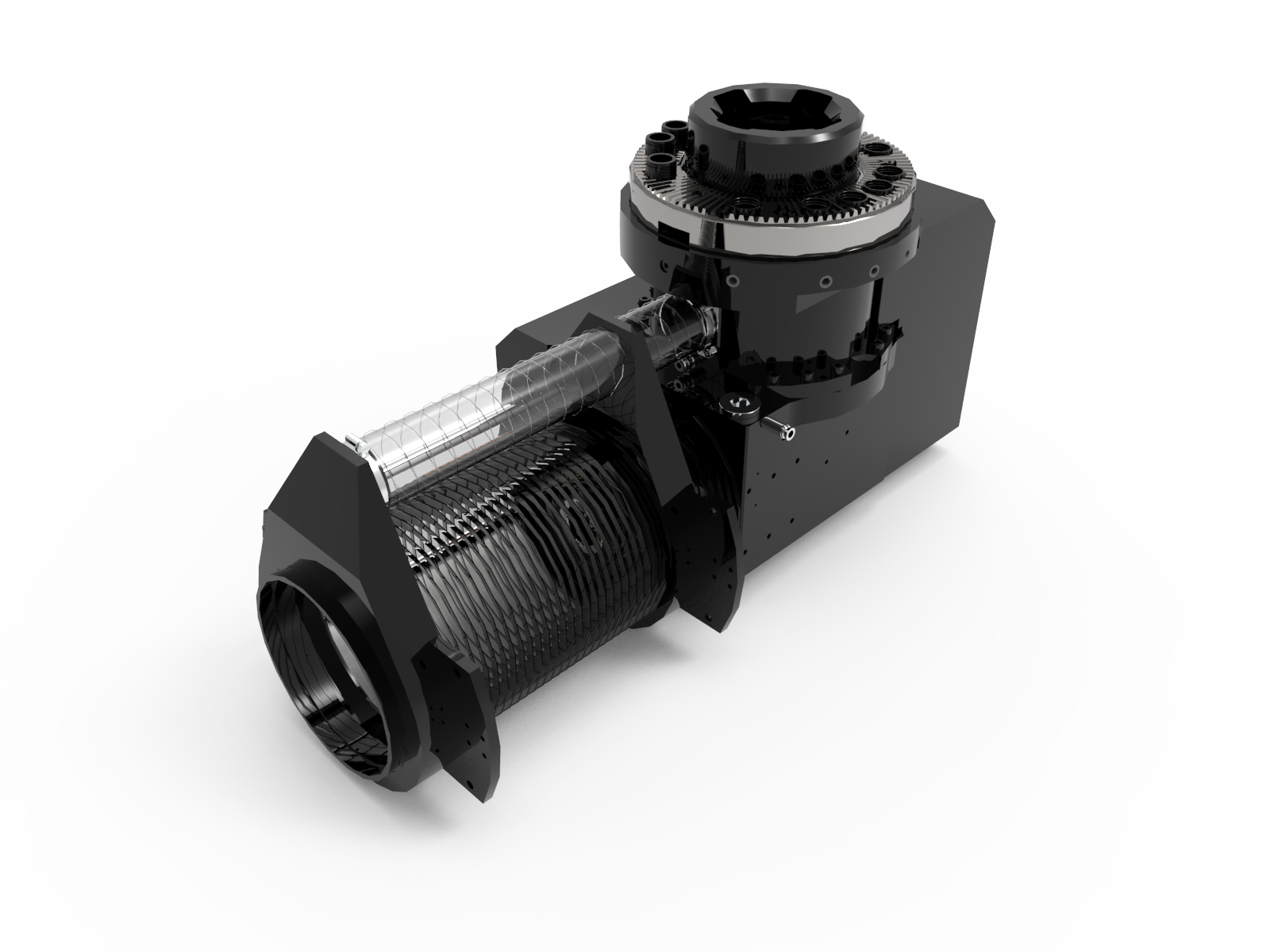

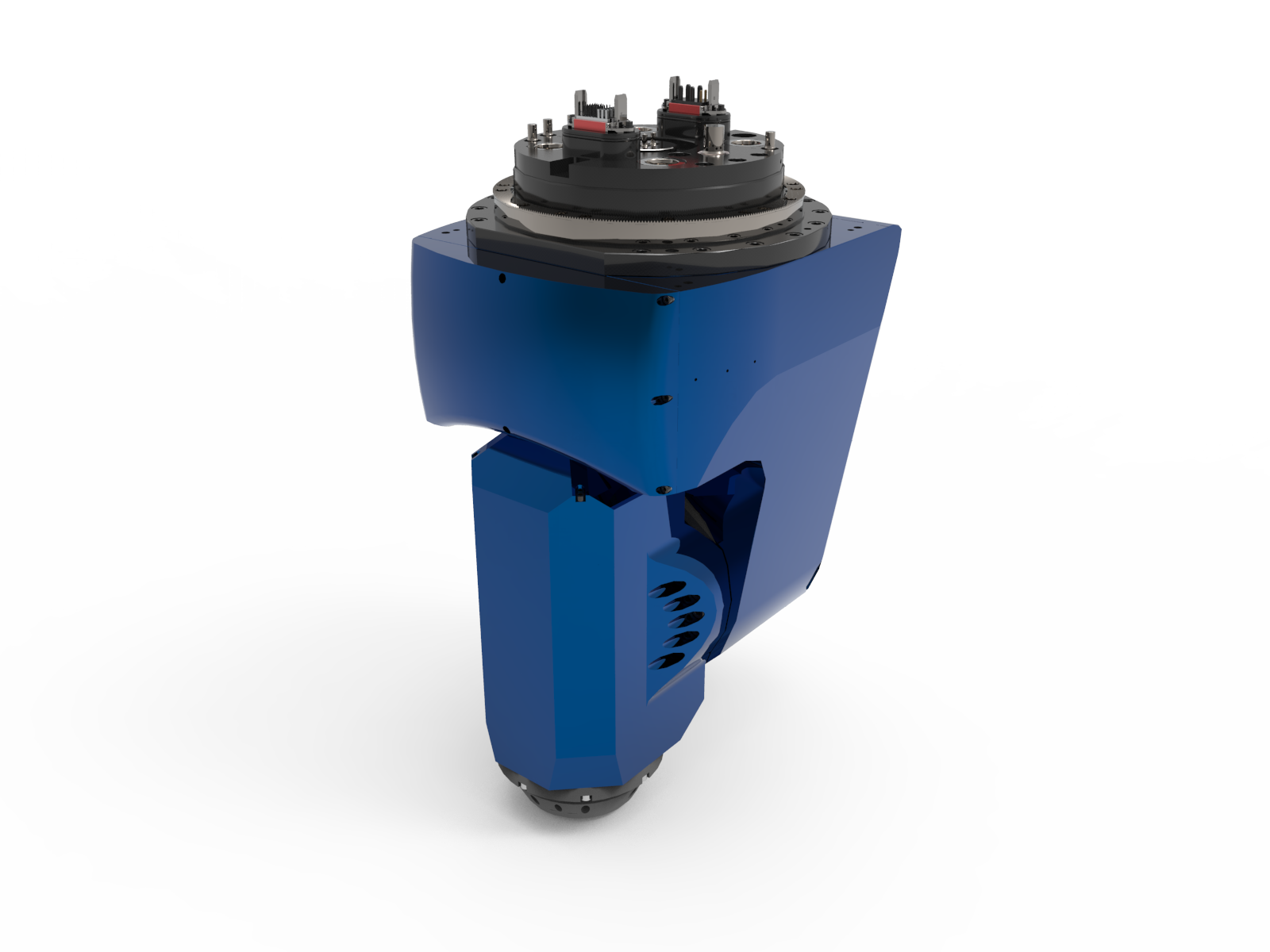

In the Y axis mechanical heads they have the motion of the tool generated directly by the machine RAM.

Our Mechanical Heads can reach working torques up to 2,500 Nm

DOWNLOAD CATALOG

Main Info for Mechanical Heads

Both 1-2 axis heads and angular heads are available in which the axes can be either continuous or indexed
with Hirth couplings from 1 ° to 5 °.
