Laser Head Horizontal
Laser Heads
-
Working rotation axes
-
Horizontal Position
Main Info for Laser Head Horizontal
LASER HEAD Horizontal Application
The Ima Tecno bevel heads can be adapted to assemble the laser cutting unit.
| Description |
Asse A TESTA |
Asse B TORCIA |
||
| Work Position | Orizzontale | |||
| Bevel Angle |
± 50° |
± 50° | ||
| Motor Encoder | Assoluto multigiro | |||
| Motors | Su richiesta | |||

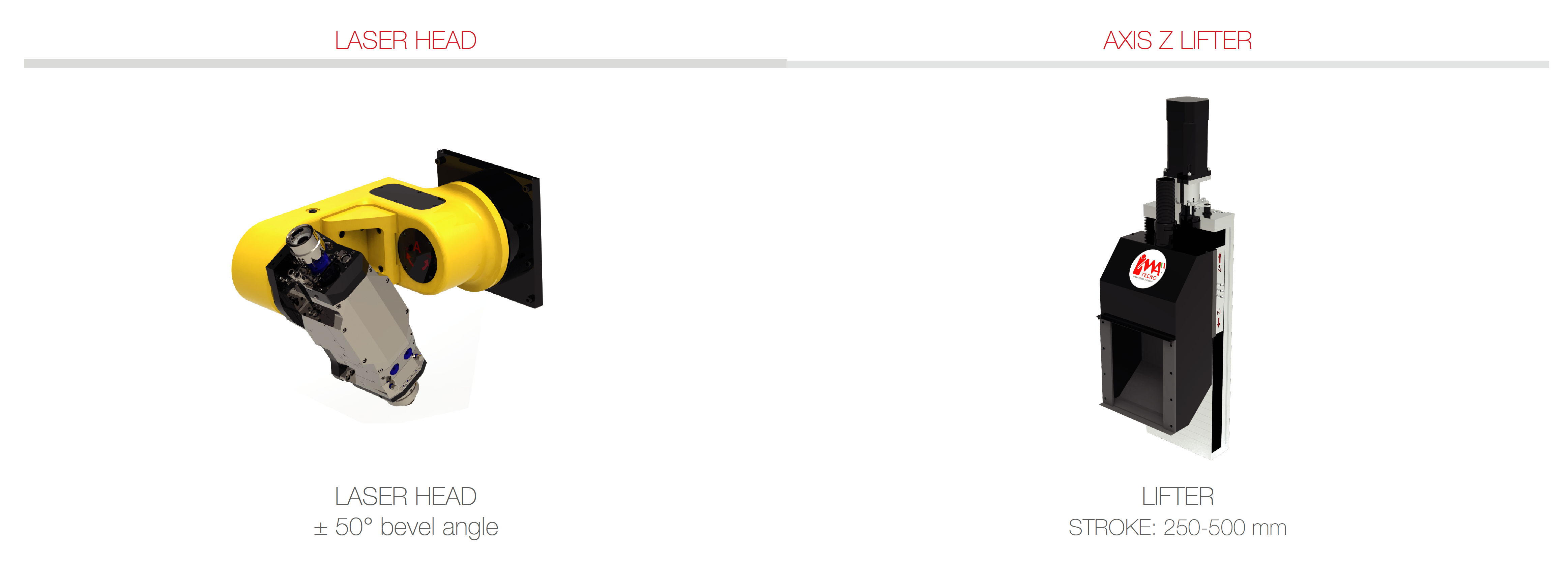

LASER HEAD possible configuration
LASER HEAD motors
The Bevel Head can be made using motors and drives supplied by the Customer which will be assembled by IMA TECNO before delivery.
